Click on any PTO Generator image below to get more information
PTO10-2S
10KW PTO Generator. Available in Capacitor or AVR Regulation.
10,000 Watt Continuous Output. 40 Amp Output at 240V.
PTO16-2S
16KW PTO Generator. Available in Capacitor or AVR Regulation.
16,000 Watt Continuous Output. 60 Amp Output at 240V.
PTO22-2S
22KW PTO Generator. Capacitor Regulated.
22,000 Watt Continuous Output. 90 Amp Output at 240V.
PTO31-2S
31KW PTO Generator. Capacitor Regulated.
31,000 Watt Continuous Output. 125 Amp Output at 240V.
PTO Generator Full Power Plugs
Full power plugs for every model.
IMD carries a plug to maximize the output capacity of every unit. Ranging from our NEMA 1450 for the 10KW to our Anderson Plug 175A.
3-Point Hitch and Trailer Mounts
3-Point hitch configuration available for models PTO10-2S, 16-2S, 22-2S, and 31-2S.
We understand your power source need to be mobile, which is why we offer 3-Point Hitch configuration. Heavy duty powder coated steel framework mean that these mounts are made to last. Our 3 point hitch is even made to fit category 1 and category 2 tractors.

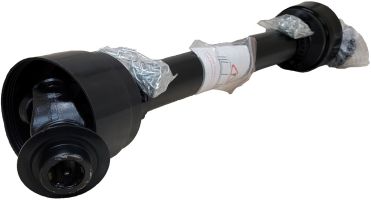

PTO Drive Shafts and Metering Equipment
PTO Shafts Available for All PTO Generators.
State of the Art Metering Technologies.
Your safety is our number one priority. that is why we sell all the tools you will need to correctly operate and monitor your PTO Generator.
Standard and Optional Features
| PTO Generators Single Phase | ||||||||
|---|---|---|---|---|---|---|---|---|
| PTO 10 KW | PTO 10 KW AVR | PTO 16 KW | PTO 16 KW AVR | PTO 22 KW | PTO 22 KW AVR | PTO 31 KW | PTO 31 KW AVR | |
| Simultaneous 120/240V output | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Full Power Outlet | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| 3-Bar LED Meter - Hertz, Volts & Amps | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Individual Circuit Protection | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Top Mounted Steel Panel | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Heavy Duty Cast Iron Gearbox | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Drive Shaft | P10013 | P10013 | P10013 | P10013 | P10013 | P10013 | P10022 | P10022 |
| Full Power Plug | P1450 | P1450 | P1460 | P1460 | P14175-4 | P14175-4 | P14175-2 | P14175-2 |
| 3 Point Hitch | P10015 | P10015 | P10015 | P10015 | P10015 | P10015 | P10015 | P10015 |
| Topcase ROTATION with Rotating Shaft Tach/Hour Meter for Tractor PTO shaft pickup | E140311 | E140311 | E140311 | E140311 | E140311 | E140311 | E140311 | E140311 |
